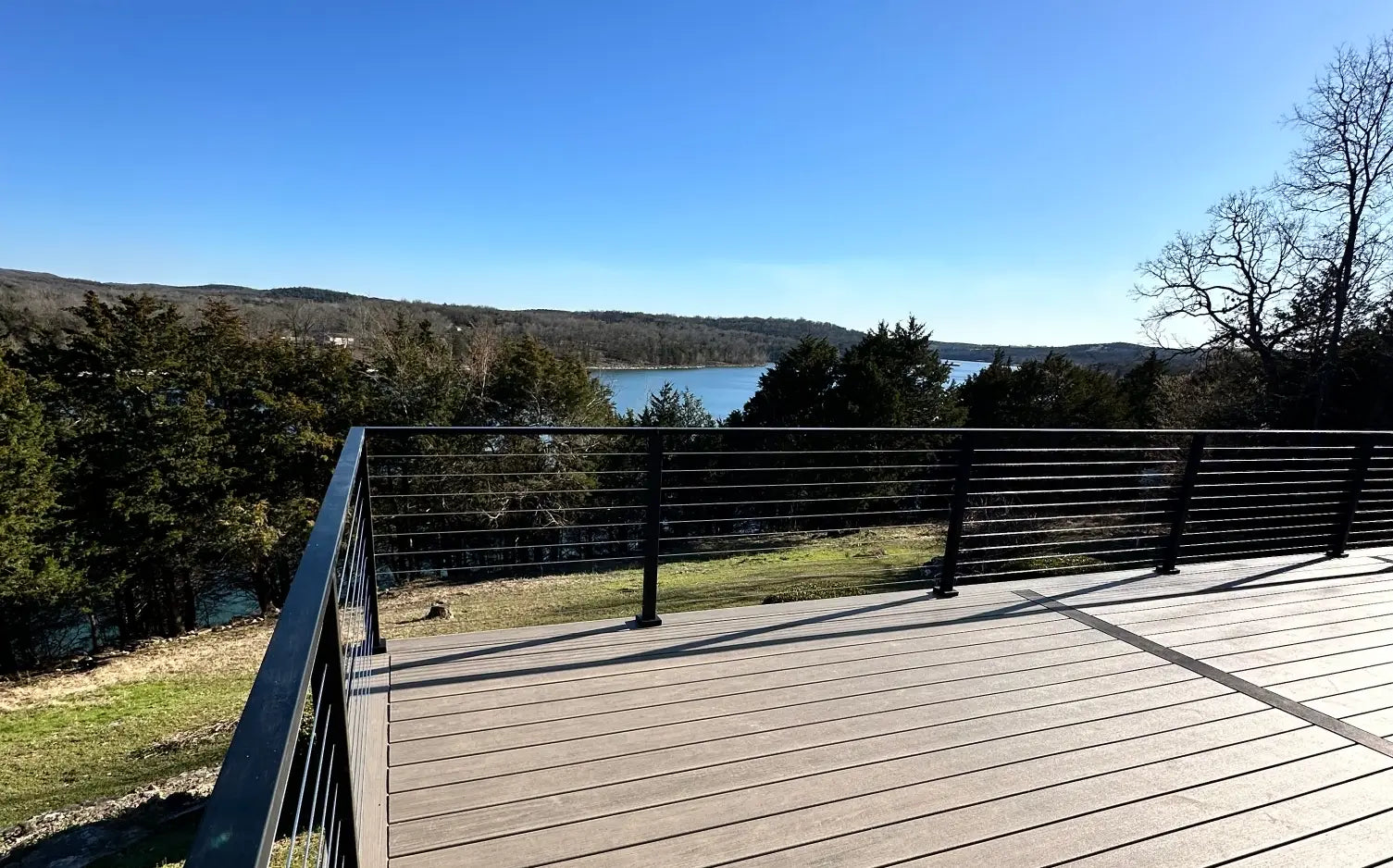

Do Cable Railings Sag Over Time? Causes and Fixes

Yes, cable railing can sag over time. A small amount of sag is normal and expected. It comes from natural cable stretch and seasonal temperature changes, even in a correctly built system. But excessive sag is different. It almost always points to a specific problem: post deflection, low installation tension, an oversized span, or a weak top rail.

This guide covers why cable railing sags, how to tell a simple tension problem from a real structural problem, and the steps to tighten your railing correctly.

Quick Diagnosis: Identifying Your Cable Railing Sag

• If it sags within 3 to 6 months: It is likely natural constructional stretch, which is a normal, one-time physical adjustment as the wire strands settle under tension.

• If it stays loose after repeated tightening: The issue is structural. Your end posts are bowing inward from continuous pull force (Post Deflection), or the wood substructure is drying and shrinking (Wood Creep).

• If it droops suddenly: Hardware or tension loss is at fault, typically caused by torsional cable unwinding, improperly crimped swage fitting slippage, or turnbuckles backing out from vibration.

7 Reasons Cable Railings Sag

A sagging cable railing is rarely caused by the wire rope snapping or stretching indefinitely. Instead, tension loss stems from structural deflection, incorrect installation techniques, or improper post spacing.

1. Post Deflection (The #1 Culprit)

Post deflection is the single primary culprit behind long-term cable sag. End posts and corner posts absorb the collective pull of every cable line in the run. Each properly tensioned line exerts 200 to 300 lbs of force. In a standard 10-line residential setup, a single end post must withstand up to 3,000 lbs of continuous tension. If you use thin-walled aluminum, unreinforced wood, or poorly anchored base plates, the post will tilt inward under load. As the post leans, the cables instantly lose their tension.

2. Natural Constructional Stretch

Brand-new stainless steel wire rope consists of dozens of tiny individual wires woven together. When tension is applied for the first time, microscopic gaps between these internal strands compress tightly against each other. This natural structural settlement is called "constructional stretch." It is an expected, one-time extension that typically happens within the first 30 to 90 days of installation and is easily corrected with a single round of retensioning.

3. Insufficient Initial Tensioning

The most common installation mistake is hand-tightening without a tension gauge. Most cable railing needs about 200 to 300 pounds of tension per cable. DIY installers who tighten by feel often stop well short of that range. The cable looks tight on day one, but it sags within weeks.

A second, less obvious mistake happens with thread-driven tensioners. If the installer turns the entire fitting without holding the cable body still, the cable twists like a spring instead of pulling straight. It feels tight at first, but temperature shifts and wind vibration cause it to untwist over the following months, and the cable suddenly looks loose.

4. Wood Frame Movement

Wood expands and contracts with ambient humidity and seasonal temperatures. In cold, dry winter weather, natural wood posts undergo significant shrinkage. This shrinks the overall frame dimensions faster than the metal contracts, causing cables to sag during freezing weather. Additionally, wood under continuous heavy load undergoes "creep"—a permanent physical deformation over time.

5. Excessive Span Lengths

Cable railing depends on its posts for lateral support. When posts are spaced too far apart, the cable has less resistance to gravity and everyday pressure—even something as small as a hand resting on the top rail. As a general rule, keep structural posts no more than 6 to 8 feet apart, and add an intermediate post or cable brace on any span longer than about 3 to 4 feet.

6. Missing or Weak Structural Top Rails

The top rail of a cable railing system does not just provide a handhold—it functions as a critical structural compression strut. It exerts an outward counter-force against the end posts to resist the tremendous inward pull of the tensioned wires.

When a cable system is installed without a rigid top rail or relies on flexible materials like thin wood, hollow plastic, or lightweight aluminum, the frame lacks the structural rigidity needed to push back. Over time, the cumulative 2,000 to 3,000 lbs of line tension will pull the opposing end posts toward each other. As the frame collapses inward, every cable in the assembly loses its linear pull and begins to sag simultaneously.

7. Hardware Unwinding and Fitting Slippage

Vibrations from wind and daily use can cause thread-driven turnbuckles to back out if they lack locking mechanisms. Furthermore, in cold weather, thermal contraction increases the pull force on the wire rope, which can cause improperly crimped fittings or low-quality swages to slip.

How to Fix Sagging Cable Railing

Step 1: Inspect the Posts for Deflection

Before grabbing a wrench, check your end and corner posts. Posts bear the cumulative pulling force of every horizontal cable line.

• Check for Lean or Flex: Sight along the post line to see if end posts are bowing inward or pulling away from the frame.

• Inspect the Structural Anchors: Look underneath the deck to ensure mounting bolts haven't loosened or pulled through the framing.

• Examine Wood Condition: If using wood posts, check for rot, structural cracks, or moisture shrinkage around hardware attachment points.

Crucial Rule: If a post is flexing or leaning, do not tighten the cables. Reinforce or re-anchor the post structure first; otherwise, added tension will worsen the deflection.

Step 2: Check Hardware for Slippage

If your posts are completely rigid, the tension loss likely stems from hardware failure.

• Examine Swage Connections: Inspect factory or hand-swaged terminals for signs of cable slippage inside the sleeve.

• Check Swageless/Mechanical Fittings: Ensure internal locking wedges or set screws haven't loosened.

• Inspect Threaded Components: Look for stripped threads, bent turnbuckles, or rusted adjustment nuts that may be failing under load.

Replace any slipping, stripped, or badly corroded hardware before proceeding to retensioning.

Step 3: Retension Cables in a Balanced Sequence

Uneven tightening distorts your posts and creates inconsistent line tension. Always balance the load across the entire post height.

1. Work from the Center Outward: Start by lightly snugging the middle cable, then alternate between the top and bottom cables.

2. Make Small Adjustments: Turn tensioning nuts or turnbuckles 1–2 full rotations at a time per cable.

3. Check Tension Uniformity: Pluck each cable like a guitar string to compare pitch, or use a cable tension gauge to ensure consistent tightness across all runs.

4. Verify Code Compliance: Ensure cables are tight enough to prevent a rigid 4-inch sphere from pushing through the lines.

Step 4: Upgrade Structural Framing if Sagging Recurs

If your cables droop again shortly after retensioning, your railing system lacks the structural stiffness required for long cable spans.

• Add Intermediate Stiffener Bars: Install slim vertical stabilizer posts between main posts to reduce unsupported cable deflection without blocking the view.

• Shorten Unsupported Spans: Add an extra structural post if your current post spacing exceeds 4 feet.

• Reinforce End Posts: Add corner bracing, blocking beneath the deck boards, or thicker steel mounting plates to counteract inward cable pull.

If your cables have lost tension, follow this systematic process to re-tension them safely without damaging your hardware or posts.

How to Prevent Cable Railing Sagging

Preventing cable droop begins during the planning and material selection phase. Eliminating frame flex and wire stretch at the start saves years of maintenance.

 1. Reinforce Terminal and Corner Posts

End posts absorb the cumulative force of all cable runs.

• Metal Posts: Use 2-inch square stainless steel or thick-wall aluminum posts with at least 1/8-inch wall thickness. The BLIKA cable railing post, for example, uses a 2"x2" T304 stainless steel frame with 1/8-inch walls specifically to resist end-post bowing under high line tension.

• Wood Posts: Use solid 4x6 or 6x6 posts. If using 4x4 posts, ensure robust structural blocking underneath the deck surface.

• Corner Posts: Wrapping a single continuous cable around a 90-degree bend can create uneven tension and post deflection over time. To balance these pull forces, you have two options. You can install two separate end posts to tension each run independently. Alternatively, you can use a single BLIKA corner post. Its pre-drilled adjacent holes and rigid frame handle 90-degree turns effortlessly while keeping tension balanced on both sides. Read: How to Install Cable Railing Around Corners

2. Install a Continuous, Structural Top Rail

Never build a cable railing system without a strong top rail. A structural wood or metal top rail acts as a compression member, pushing the tops of the end posts apart to directly counteract the pulling force of the cables.

3. Control Spanning and Add Cable Braces

Space structural posts no more than 4 feet apart on center. This is the industry standard most manufacturers and installers follow to keep cable deflection within code. Some heavier-duty post systems allow wider spacing, up to 6–8 feet. In that case, add intermediate cable braces or stabilizers every 3 to 4 feet. This keeps the cable spacing uniform and stays within the 4-inch sphere rule.

4. Use Cable Sleeves on Wood Posts

Steel cable cuts into wood over time if it runs directly through drilled holes. BLIKA T316 stainless steel protector sleeves prevent that wear, and their marine-grade build hides drill-hole imperfections behind a sleek flange.

Long-Term Maintenance Schedule

Cable railing is one of the lowest-maintenance railing options available, but “low maintenance” does not mean “no maintenance.” A little regular attention goes a long way.

• First 1–3 months after installation: Perform a re-tightening to compensate for constructional stretch. Multiple sources recommend re-tightening after the system has lived through its first season, followed by quick annual checks.
• Seasonal checks: After any major weather event — a big storm, heavy freeze, or sustained high winds — do a quick check to make sure nothing has shifted or loosened.
• Full inspection and cleaning: For most outdoor systems, plan on a full inspection and cleaning three to four times a year, roughly once per season. At a minimum, twice a year is enough for most climates. If you are in a coastal environment within 5 miles of saltwater, bump that up to quarterly cleaning and twice-yearly treatment with a stainless steel polish and sealant.
• Cleaning technique: Use mild soap or stainless steel cleaner with warm water and a soft cloth. Avoid harsh chemical cleaners, bleach-based products, and abrasive scrubbers, as these can damage powder coat finishes and stainless steel alike. High-pressure washing is also not recommended — it can force water into fittings and cause premature wear on coatings.
• Annual hardware check: Tighten or replace any parts that show signs of wear. Check post alignment and inspect mounting surfaces, especially on wood decks, for rot or separation.

Frequently Asked Questions

How tight should cable railings be?

The building code specifies approximately 200 lbs of tension per cable. This is tight enough to meet spacing requirements but loose enough to avoid damaging posts. Aim for a guitar-string level of tautness with no visible sag.

Can I tighten sagging cable railings myself?

In most cases, yes—if the posts are structurally sound. Use a tension gauge for accuracy and follow the alternating sequence: middle cable first, then work up and down. Never overtighten, and never tighten cables on a structure that is already failing.

How much does temperature affect cable railing tension?

Metal expands in heat and contracts in cold. Cables tensioned on a cool day can feel noticeably looser in hot weather, while cables cranked hard in summer can pull posts too aggressively when temperatures drop. This is normal seasonal movement, not a defect.
