When installing a cable deck railing, a corner is one of the most challenging areas because the cable direction changes at this point. If the corners are not properly handled, the post structure may deform, the cables may sag, and the railing will fail to pass local safety inspections.
So how should you handle the corners? What kind of posts should you use? Should you use one post or two? How do you run the cable? What hardware should you use?
Installing cable railing around corners requires the use of dedicated corner posts to properly manage cable direction and maintain system tension. And it is best practice to use a single corner post at each corner.
This article will guide you through everything you need to know about installing cable railings around corners. Let's dive in.
Why Cable Railing Corners Need Special Treatment?
In a cable railing system, each individual strand of stainless steel cable is typically torqued to a tension of 200 to 300 pounds. When you multiply that across 10 to 13 rows of cables, a single end post must withstand 2000 to 3900 pounds of constant pulling force. The posts at the corners, however, are subjected to greater tensile forces than the end post along the straight section.
In straight railings, cables typically run from one end post to another. The tension force is mainly applied in one direction. However, when a cable run hits a 90-degree corner, the corner posts endure immense structural forces from two perpendicular directions. So, if not handled properly, the following risks may arise:
- Risk of Deformation: If the corner frame is not adequately reinforced, the immense tensile force will pull the top of the corner post inward, causing it to tilt, bend, or twist.
- Violation of Building Codes: According to the International Residential Code (IRC), cable railings must comply with the 4-inch sphere rule. This means that under load, no opening may allow a sphere with a diameter of 4 inches (equivalent to the size of a baby’s head) to pass through. If your corner post deflects even slightly, the cables will sag, failing the deflection test and violating cable railing code requirements.
The corner posts bear the majority of the tensile force of the entire system, so choosing the correct layout method is the most critical decision when installing a cable railing for a deck.
Best Method to Install Cable Railing around Corners (Single-Post Corner)
When installing cable deck railings around corners, the best method is to use dedicated corner posts. BLIKA recommends the single-post corner solution to its customers, which means placing a single corner post at each corner.
BLIKA’s heavy-duty corner posts feature pre-drilled holes on adjacent sides, allowing a single post to effortlessly handle a 90-degree turn. The steel cable does not need to be bent around the corner. Instead, one cable terminates on one side of the post, and a new line begins on the adjacent side.
Why It Is the Best Method?
Using a single corner post at the deck corners is the optimal solution, because it ensures sufficient stability, maximizes visibility, is cost-effective, and simplifies installation.
- Maximum Visibility: Compared to using two posts at a 90-degree corner, using a single post gives the entire railing a cleaner, more streamlined appearance.
- Cost-Effective: You save money by purchasing fewer heavy-duty corner posts and hardware components.
- Fewer Installation Steps: You only have to mount, level, and structural-block one post at the corner rather than two, which cuts down on heavy labor.
- Sufficiently Sturdy: BLIKA’s specially designed heavy-duty corner posts feature a robust 1/8-inch wall thickness, which can easily withstand over 3000 pounds of vertical tension. This ensures that a single corner post is sufficient to maintain100% stability under full cable loads.
Steps to Install Cable Railing around Corners
Here’s how to install a cable railing around corners using BLIKA’s pre-drilled corner posts.
Tip: Before starting mounting the corner posts, install heavy wood blocking (at least 2x6 or 2x8 lumber) underneath the deck boards right where the corner post will sit. Secure the blocking directly to the rim joists using structural screws. This prevents the bottom of the posts from pulling loose at its base. After that, follow the steps below to install cable railing around the corners.
Step 1: Mount the corner post.
Secure your heavy-duty pre-drilled corner post to the deck frame using structural bolts or expansion anchors. Use a level to ensure it is perfectly vertical on all sides.
Step 2: Install the Top Handrail.
Install your top handrails across all posts, and secure it tightly to the corner post. The handrail acts as a structural compression brace. If you don't install it first, tightening the steel cable will immediately pull the top of the corner post inward.
Step 3: Thread the Cables.
Terminate one continuous cable run into one side of the corner post using a compact, short anchor terminal. From there, insert a long tensioning terminal into the adjacent pre-drilled hole to launch a brand-new, independent cable run down the remaining section of your deck.
Step 4: Tension the System.
Tension the cables using a tension gauge. Always start from the middle cable and alternate upward and downward. This distributes the load evenly across the corner post and prevents warping.

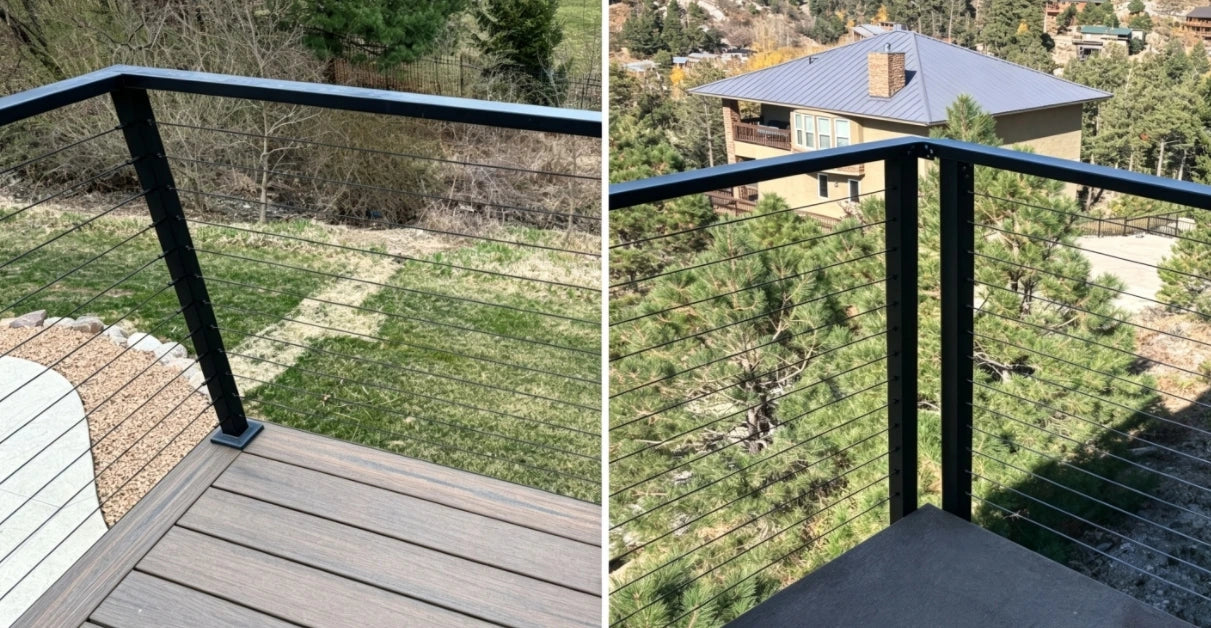

Understanding the Double-Post Corner Method (Not Recommended)
Another method to install cable railing around corners is using the double-post corner method. This refers to placing two posts side by side at the corner instead of just one. This was a common practice in early cable railing design, but it has now been largely phased out.
Here is why:
- Visual Obstruction: You have two thick posts crammed into a small corner space, which is not only unsightly but also obstructs the view.
- Increased costs: You'll need to purchase twice as many corner posts and hardware.
In addition, depending on how the steel cables are routed between the two corner posts, there may be safety risks and maintenance challenges.
Option 1: Non-Continuous Cable Run
In this layout, the cable run comes down one side of the deck and completely terminates at the first corner post. Then, a completely new, separate cable run starts on the second corner post to continue down the next side of the deck.
With this method, there will be a structural gap between the two corner posts. If this gap exceeds 4 inches, it immediately violates the 4-inch sphere rule. This poses a dangerous fall hazard to children and will fail inspection under local building codes. This problem is particularly common in side-mount systems.
Option 2: Continuous Cable Run
In this layout, installers place two posts 2 inches apart at the corner and then thread a single continuous cable through both posts to navigate the 90-degree turn. The cable enters the first post, runs through the gap between the two posts, enters the second post, and continues forward.
This method also has the following drawbacks:
- Post Wear: When high-tensile steel cables are forced to bend at corners, they exert intense frictional pressure on the inner and outer corners of the post holes. Over time, this continuous sawing motion under high tension will scratch, gouge, and wear down the metal posts. This damages the protective powder coating, leading to premature rusting and compromising the structural integrity of the railing.
- Difficulty in Maintenance: If the cables lose tension or need adjustment, they cannot be easily retensioned because friction prevents the slack cables from being pulled out evenly.
How to Handle 45-Degree Corner in Cable Railing?
The above describes the most common 90-degree turns. However, some modern decks feature multi-sided layouts or octagonal bump-outs, which require 45-degree turns.
The good news is that handling a 45-degree angle is actually much simpler than a sharp 90-degree corner. Because a 45-degree turn is gentle, you do not need to use a special corner post, nor do you need to stop the cable and start a new run.
You simply need to install a standard post with horizontal pre-drilled holes at the 45-degree corner, which allows you to turn a single, continuous cable straight through it. The cable will naturally bend just enough to smoothly conform to the gentle 45-degree turn.
FAQs
Q: Can cable railing go around corners?
A: Yes, cable railing can absolutely go around 90-degree corners using dedicated corner posts. BLIKA’s dedicated corner posts feature pre-drilled cable holes on adjacent sides, allowing a single post to effortlessly handle a 90-degree turn.
Q: Can cable railing cable bend around a 90-degree corner?
A: Yes, but it's not recommended. Standard cable railing cable should not be sharply bent around 90-degree corners because it creates friction and prevents proper tensioning. In addition, a 90-degree bend can cause the cables to break and wear down the corner posts. It also poses problems for future maintenance.
Q: Do cable railing corners need special hardware?
A: Yes, cable railing corners require specialized hardware to handle the immense tension forces and maintain a clean look.
When using BLIKA’s single-post corner method, the cable run terminates inside one side of the corner post, and a brand-new run begins on the adjacent side. To make this work flawlessly without the internal fittings colliding inside the corner post, you need long cable fittings and short anchor terminals.
In addition, if you use a layout with a continuous cable running directly through the corner posts, it's best to install 90-degree protective sleeves to prevent the hard stainless steel from scratching the powder coating on the posts.
Final Thoughts
Mastering 90-degree turns is the key to a beautiful, long-lasting cable railing system. Traditional double-post methods often lead to code-compliance headaches and high material costs. Shifting to a single corner post offers a cleaner, more efficient path forward.
By treating the corner post as a reset button—terminating your cable run on one face and starting fresh on the adjacent side—you achieve the perfect balance of structural stability and minimalist design.
BLIKA uses adjacent pre-drilled corner posts and staggered "long and short" terminal pairing, making 90-degree cable railing corners incredibly easy to install.
