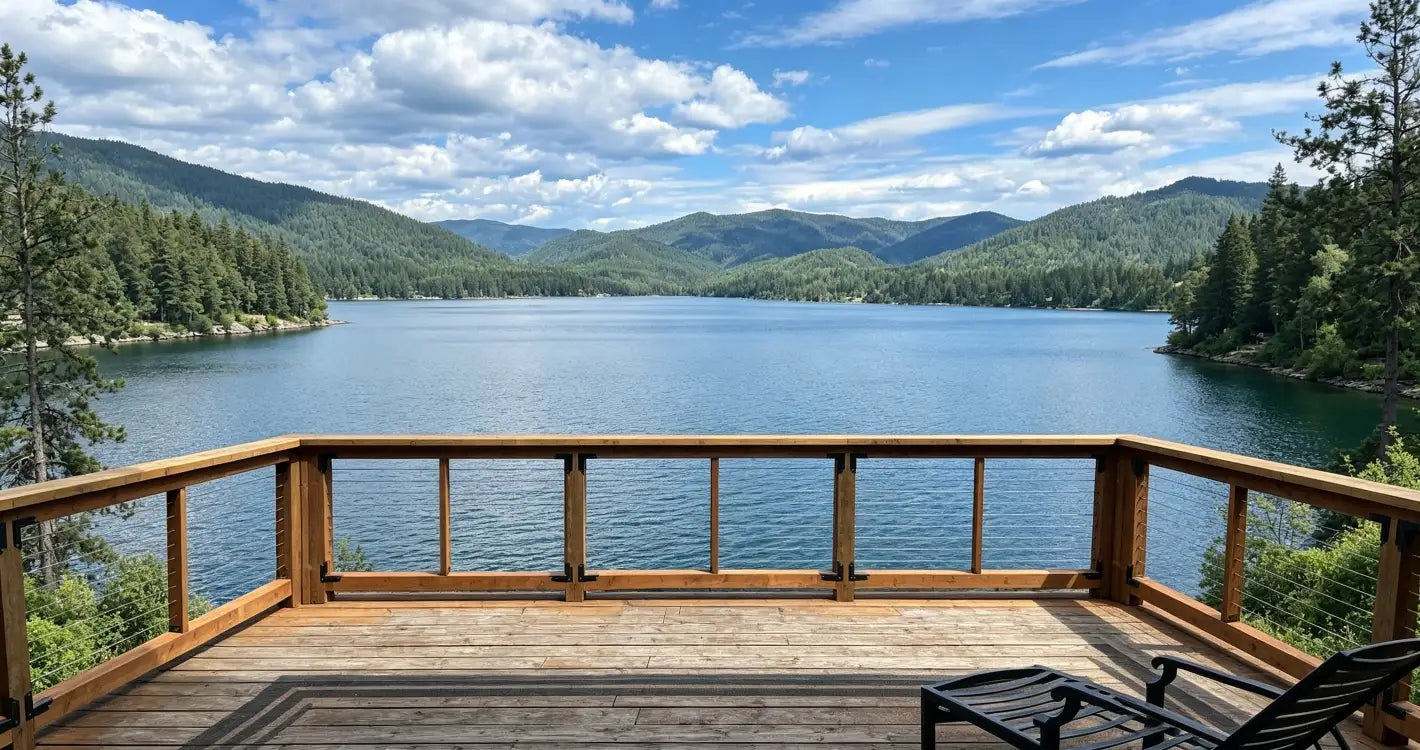

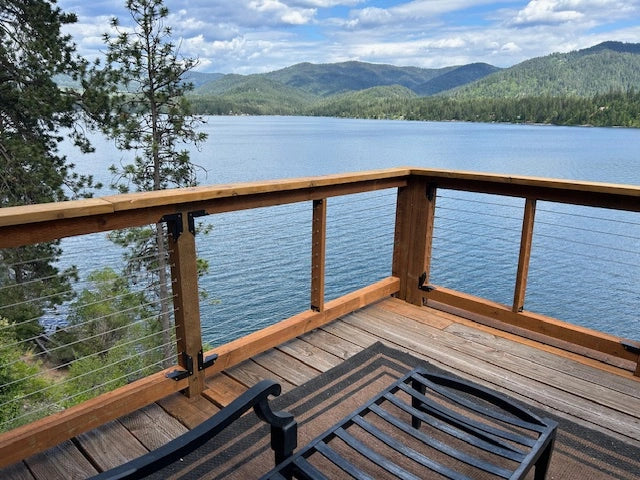

This guide will walk you through how to install a cable railing into your existing wood posts using BLIKA adjustable cable rail kits. Using turnbuckle tensioners is one of the easiest and most reliable ways to install a cable railing on wooden posts, and it’s especially suitable for DIY beginners.
What You’ll Need
Materials:
- Stainless steel cable wire rope: Choose 1/8" or 3/16" depending on your preference.
- Adjustable angle cable railing kit: Choose 1/8" or 3/16" based on your cable diameter.
- Protective sleeves: Prevent cables from biting into the wood over time. Use standard protective sleeves for level deck sections and angle beveled protector sleeves for angled stair runs.
Tools:
- Power drill
- Drill bit (sized to match your cable hardware)
- Drill guide jig
- Hydraulic crimper
- Cable cutter
- Bent wrench
Railing Layout & Building Code Requirements
Before layout and installation, check your local building codes. To ensure structural safety and pass inspection, your wood post cable railing must meet the following standards:
- The 4-Inch Sphere Rule: Once fully tensioned, the cables must be tight enough that a 4-inch sphere cannot pass through any gap under force.
- 3-Inch Cable Spacing: To meet the 4-inch sphere rule, space your cable runs 3 inches apart (center-to-center) and never exceed 3-1/8 inches.
- 4-Foot Maximum Post Spacing: Keep the distance between your wood posts within 4 feet to prevent cable deflection under load. If post spacing exceeds 4 feet, install intermediate cable stiffeners or stabilizer posts.
- Top Rail Installation: Always install the top handrail before tensioning the cables. The top rail carries the severe structural compression load generated by taut cables and prevents end posts from bending inward.
Step-by-Step Guide to Installing Cable Railing on Wood Posts
Step 1: Mark the Cable Holes.
1. Apply Painter’s Tape: Run vertical strips of painter's tape along the center of your wood posts. This protects the wood surface and gives you a clear line for marking.
2. Mark Run Heights: Measure the height from the deck floor to the underside of the top rail, and subtract 2 to 2.5 inches of margin at both the top and bottom. Then divide the remaining space evenly (at 3 inches or less apart) to calculate your exact hole spacing and mark your points.
Step 2: Mount toggle turnbuckles on end posts.
Install the fixed toggle ends on one end post and the turnbuckle tensioners on the opposite end post.
1. Position and Mark: Align the center of each toggle bracket over your marked cable height point on end posts. Use a pencil to mark the top and bottom screw holes.
2. Pre-Drill Pilot Holes: Remove the toggle bracket and pre-drill pilot holes at your marked screw spots.
3. Mount the Bracket: Reposition the brackets over the pre-drilled holes and drive in the mounting screws until flush and secure.
Step 3: Pre-Drill Pass-Through Holes in Intermediate Posts.
1. Set Up Drill Guide: Attach a drill guide to the intermediate post. Load a 3/16" carbide drill bit into your drill.
2. Drill Pass-Through Holes: Drill straight into your marked spot halfway through the post from the front, then repeat from the opposite side to meet in the middle and prevent wood blowout.
3. Install Protective Sleeves: Insert stainless steel protective sleeves into both entry and exit holes.
Step 4: Thread, Cut, and Swage the Cable.
1. Swage the Toggle Terminal: Insert the cable into the fixed toggle end and crimp twice with a hydraulic crimper.
2. Thread the Cable: Feed the cable through all intermediate posts and put it hand-tight toward the opposite end post.
3. Measure and Cut: Unscrew the turnbuckle body to extend it, and pull the cable hand-tight against the turnbuckle’s threaded swage stud. Mark and cut the cable cleanly at the midpoint of the swage stud using a dedicated cable cutter.
4. Swage the Turnbuckle Stud: Completely unscrew the threaded stud from the turnbuckle body, insert the cut cable end into the stud, and crimp it 2 times with the hydraulic crimper.
5. Assemble and Tension: Screw the crimped stud back into the turnbuckle body, rotate the body with a wrench to achieve proper tension, and lock the jam nuts securely.
6. Repeat the steps above for all remaining cable runs.
Step 5: Tension the cable system.
1. Once all your cables are in place, begin tensioning each run from the middle cable outwards using an open-end wrench.
2. Tighten until the cable has minimal deflection (less than 1/4" under 50 lbs of force), then tighten the jam nuts to lock the turnbuckle permanently in place.
Why Choose Turnbuckle Kits for Wood Posts?
When installing cable railing on wood posts, BLIKA highly recommends turnbuckle tensioner kits for the following reasons:
- Easier to Install: Surface-mount brackets screw directly onto the post face, without the need for deep through-drilling or complex tools.
- No Special Handling for Corners: Eliminates the need for offset drilling or post modifications.
- Suitable for All Scenarios: Adjustable 180° toggle bases seamlessly adapt to level decks, stairs, and angle transitions with a single hardware kit.
Why Install Cable Railing on Wood Posts?
Adding cables to a new or existing wood railing is incredibly popular for a number of reasons:
- It’s a huge improvement to your view.
- It costs less per foot compared to an all-metal system.
- It's significantly less maintenance than wood pickets.
- It's a very DIY-friendly project.
