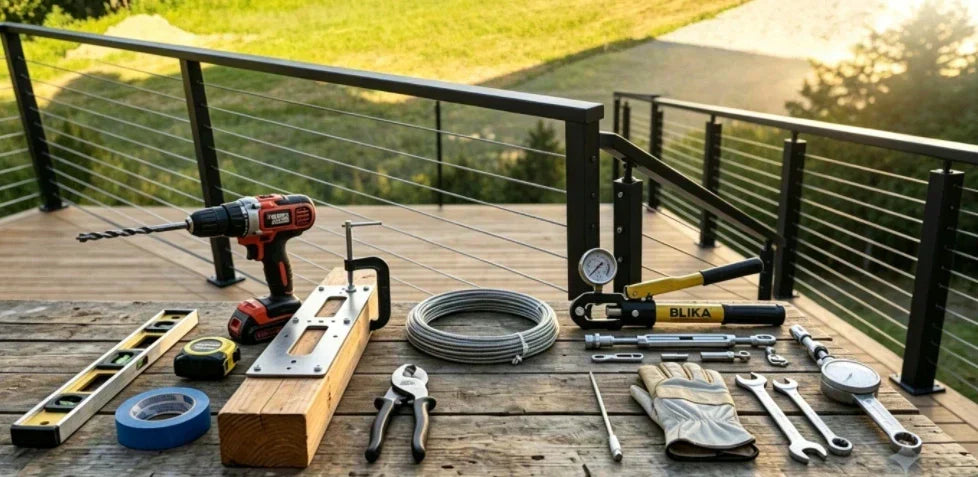

When installing cable railings, choosing the right tools is essential to ensure a smooth installation and full compliance with building codes. In this article, we’ll break down the essential tools needed for a cable railing installation.
1. Planning and Measurement Tools
Tape Measure (16ft+): Essential for measuring cable length, post spacing, and handrail height. We recommend choosing a model with a magnetic hook for convenience when working alone.
Spirit level (24 inches and 48 inches): The shorter spirit level is used to check whether individual posts are vertical; the longer one ensures the top rail is perfectly level. For stair installation, you’ll also need a bevel or digital protractor to match the stair pitch.
Chalk line or laser level: For longer decks, use a chalk line to mark the center points of the posts. A self-leveling laser level projects a clear red line across the entire deck, ensuring every post is perfectly aligned. This is invaluable for projects longer than 20 feet.
2. Drilling and Anchoring Tools
Power Drill/Hammer Drill: Use a standard power drill for wooden decking; for concrete or masonry, a hammer drill with a hammering function is required. If you need to drill through stainless steel posts, a magnetic drill press or bench drill press provides the stability and torque needed to create clean, precise holes.
Drill Bit: Depending on the material you're working with, you'll need to choose the appropriate drill bit.
- Wood: A standard twist drill bit is sufficient, but you must use a drill guide or positioning jig. Cable holes typically need to be drilled through the post at a specific angle. A guide ensures perfect alignment between the entry and exit holes; otherwise, the cable will not pass through.
- Metal (Stainless Steel/Aluminum): Use cobalt-based or carbide drill bits; for large-diameter holes, use a step drill in conjunction with them. Be sure to use cutting fluid to prevent overheating and bit dullness.
- Concrete/Masonry: Use SDS-plus hammer drill bits; their diameter should be 2 millimeters larger than that of the expansion anchor to ensure a secure anchor.
Tip: If you want to avoid the hassle of layout planning and tedious drilling, consider using pre-drilled posts. For example, BLIKA’s pre-drilled posts feature 10 to 13 rows of pre-drilled cable holes, allowing for direct cable installation. With a standard hole spacing of 3-1/8 inches, they fully comply with the safety requirements of the International Building Code (IBC) and can save you a significant amount of time and effort on-site.
3. Wire Rope Cable Cutters
Heavy-duty cable cutters: Professional heavy-duty cable cutters feature unique curved, overlapping blades that cleanly and precisely cut the cable from any angle without flattening it. This leaves perfectly rounded, burr-free edges. This is crucial for ensuring the cable can pass smoothly through pole holes and be installed into narrow joint openings. Never use regular pliers or diagonal cutters, as they will flatten the cable and cause the strands to fray.
Cable threader/pull needle: This is a long, slender, and flexible steel needle that clamps onto the end of the cable, allowing you to “thread” it through narrow pole holes without scratching the powder-coated surface or the cable itself.
4. Cable Crimping or Termination Tools
To secure the cable to the end post, you’ll need to install specialized fittings, such as tensioners or terminals. This process requires a hydraulic crimping tool or an Allen wrench, depending on the type of fitting.
Cable Crimping Tool: If you’ve chosen invisible cable railing kits that require crimping, you’ll need a hydraulic crimping tool. This tool secures metal sleeves to the end of the rope through physical compression. You can choose between electric-hydraulic crimping tools and manual hydraulic crimping tools.
Allen wrench or screwdriver bit: If you’ve chosen swageless cable fittings, you’ll simply need to use a specialized Allen wrench or screwdriver bit to securely fasten these fittings in place. Swageless fittings secure the cable by screwing into it or using a mechanism similar to a zip tie, eliminating the need for bulky and expensive hydraulic crimping machines. This significantly lowers the installation barrier and tool costs.
5. Tensioning and Alignment Tools
Open-End Wrenches: Tensioning a cable railing system typically requires tightening an internal or external nut to keep the cable taut. You will usually need two open-end wrenches (typically 7/16 inch or 3/8 inch, depending on the specifications of your system). One wrench is used to secure the connector body, preventing the cable from tangling like spaghetti, while the other is used to tighten the tension nut.
Tension Gauge (Tension Meter): This specialized instrument calculates the actual tension by measuring the cable’s deflection under a known load to verify compliance with building codes. Industry standards typically require a tension of 200–400 pounds per cable.
Marker: Before you begin turning, draw a reference line on the tensioner nut. This allows you to keep track of the number of turns and ensures that all cables in the same set are tensioned to the same level.
6. Safety and Auxiliary Tools
Cut-resistant gloves: If a stainless steel cable is cut, the tiny twisted steel wires at the break may become extremely sharp. So you need to wear heavy-duty gloves during cutting, threading, and tensioning to prevent cuts.
Safety goggles: This is a mandatory safety precaution whether you are drilling into metal or cutting high-tensile steel wire.
Spring Clamps/F-Clamps: Use these clamps to temporarily secure handrail connectors or post caps while tightening screws. This is especially useful when working alone.
Summary
To ensure your DIY wire rope railing project achieves a professional, code-compliant result, make sure to gather the following essential tools, organized by task:
Layout and Alignment: A tape measure, a level, and a specialized drilling jig to ensure the wire rope is laid perfectly straight.
Drilling: A heavy-duty electric drill equipped with flat-shank drill bits (for wooden posts), high-quality cobalt alloy drill bits with cutting fluid (for metal posts), or masonry drill bits (for concrete base installation).
Cable Cutting and Threading: Use specialized heavy-duty cable cutters to make a clean, burr-free cut; be sure to wear cut-resistant gloves to ensure safety.
Crimping and Anchoring: A hydraulic cable crimping tool to securely cold-weld fittings together; also include matching Allen wrenches or screwdriver bits.
Tensioning: A double-ended wrench to tighten the cable without twisting it; a tension gauge to ensure compliance with local building safety codes.
Using a unified system from trusted brands such as BLIKA ensures that your marine-grade T316 hardware works perfectly with the installation tools, creating a flawless and durable landscape.
