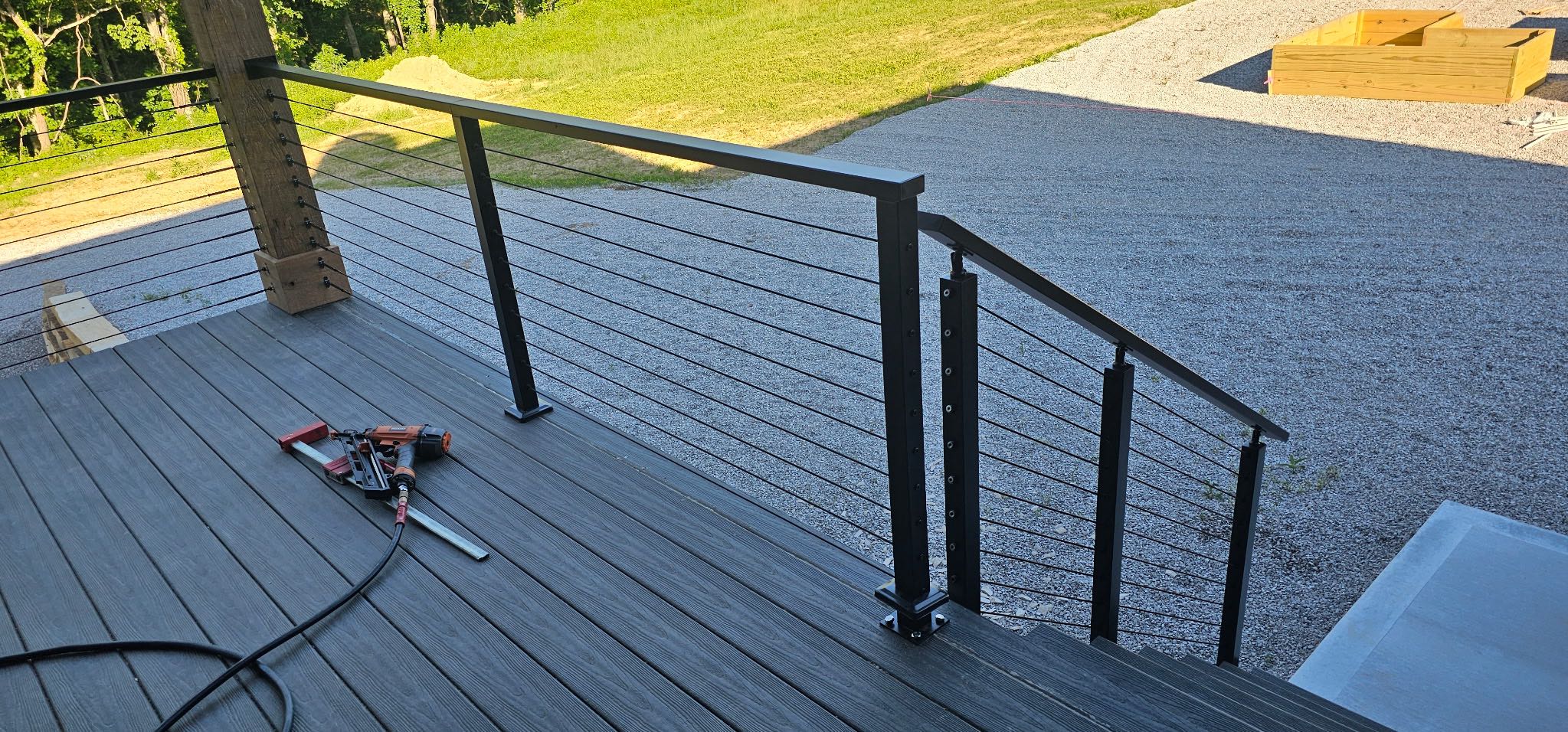

Cable Railing Code Requirements: Complete IRC & IBC Guide

Building codes for cable railing ensure safety and structural integrity. Because steel cables can stretch under pressure, cable railing systems must comply with specific tension, spacing, and height rules under the International Residential Code (IRC) and International Building Code (IBC) to pass inspection.

Core Code Quick Reference

The key differences between residential and commercial cable railing code requirements are summarized below:

Understanding the Big 4 Cable Railing Code Requirements

1. The 4-Inch Sphere Rule and Cable Spacing

IRC Section R312.1.3 and IBC Section 1015.4 state that guards must not have openings that allow a 4-inch-diameter sphere to pass through.

Although the maximum allowable opening is 4 inches, cable holes should be drilled 3 inches apart on center. Because stainless steel cable expands under force, a 4-inch static gap will deflect beyond 4 inches when pushed, causing an immediate inspection failure. The gap between the bottom cable and the deck surface must also stay under 4 inches.

2. Minimum Railing and Handrail Heights

Under IRC Section R312.1.2, residential deck railings must stand at least 36 inches high from the finished floor surface. IBC Section 1015.2 requires commercial multi-family or public buildings to have a minimum railing height of 42 inches.

For stairways, a dedicated handrail must be installed between 34 inches and 38 inches, measured vertically from the stair nosing.

3. Post Spacing, Cable Tension, and Deflection Control

Cable deflection is directly tied to support distance. To prevent openings from expanding beyond 4 inches under force, maximum cable railing post spacing is 4 feet (48 inches), with 200–300 lbs of strand tension required to prevent vertical spreading. If post-to-post distance exceeds 4 feet, installers must add intermediate stiffener posts or vertical spacer bars to lock cable gaps.

• Wood Framing: While building codes apply the same 4-inch deflection rule to all materials, wood posts flex under tension over time. A tighter 3-to-4-foot spacing is strongly recommended for wood posts to prevent tension loss.

• Metal Framing: Structural stainless steel or aluminum posts can comfortably span up to 4 feet when properly anchored. Utilizing purpose-built metal posts—such as BLIKA structural stainless steel posts—ensures rigid support that resists terminal post flex under required tension loads.

Each strand (typically 1/8-inch or 3/16-inch 1x19 marine-grade stainless steel wire rope) should be tightened to 200 to 300 lbs of tension using a cable tension gauge to meet deflection specs.

4. Top Rail Structural Load Requirements

Under IRC Section R301.5 and IBC Section 1607.8.1, the top rail of a cable railing system must withstand a concentrated load of 200 lbs applied in any downward or outward direction.

Commercial applications under IBC additionally require the top rail to support a uniform load of 50 lbs per linear foot. Cable railings cannot be installed without a rigid top rail unless the posts are specifically engineered and anchored to resist high lateral pulling forces.

Stair Cable Railing Code Requirements

While horizontal deck railings follow standard guardrail rules, stair installations must satisfy additional grip, continuity, and geometry requirements under IRC and IBC codes:

1. Strict Handrail Height (34" to 38"): Unlike horizontal railings (36" or 42" high), stairway railings require a dedicated handrail installed strictly between 34 and 38 inches measured vertically from the stair tread nosing.

2. Graspability Standard: The top rail on a stair cannot just be a wide flat board. It must be a code-compliant "Type I or Type II" continuous handrail that allows a full finger-enclosure grip.

3. The 6-Inch Stair Triangle Exception: The bottom triangular space formed by the stair tread, riser, and bottom rail allows a 6-inch sphere test exemption, whereas all cable-to-cable gaps must still strictly fail the 4-inch sphere pass-through rule.

4. Angled Washers and Hardware: Because stair cables run at an incline (typically 30° to 37°), installers must use angled transition fittings or pre-drilled angled posts to maintain 200–300 lbs of cable tension along the slope.

Special Code Considerations and Common Misconceptions

• The "Ladder Effect" Clarification: A common myth is that horizontal cable railings violate building codes due to climbability. Modern editions of the IRC (2015, 2018, 2021, and 2024) do not prohibit horizontal infill, provided the system satisfies the 4-inch sphere test and load requirements.

• Local Code Overrides: Local Authorities Having Jurisdiction (AHJ) may enforce stricter local amendments. Always check with city building departments or HOA guidelines before purchasing hardware.

• Material Compliance: Outdoor installations in coastal or high-humidity environments require Grade 316 marine-grade stainless steel to prevent rust and loss of tension over time.

Important Clarification: Residential/Commercial (IRC/IBC) vs. OSHA Standards

Do not confuse OSHA standard guardrail rules with building codes (IRC/IBC). OSHA rules (29 CFR 1926.502) apply only to temporary job site safety and industrial workplace fall protection—requiring thicker 1/4" wire ropes, 19-inch midrail gaps, and high-visibility flags. They do NOT satisfy municipal building codes for permanent residential or commercial deck railings, which require 3-inch cable spacing and compliance with the 4-inch sphere pass-through test.

Key Compliance Points for Installation

Even when using compliant products, improper installation sequence can lead to inspection failure. Follow this standard sequence to ensure your cable railing system maintains structural tension and passes code testing:

1. Mount Frame and Top Rail First: Securely anchor end posts and intermediate posts to the deck structure. Crucial: Install and reinforce the continuous top rail before tensioning cables. The top rail provides essential compression resistance to prevent end posts from pulling inward under cable load.

2. Thread the Cables: Run marine-grade T316 stainless steel wire ropes through pre-drilled post holes without twisting the strands.

3. Tension Center-Outward (Inside-Out): Do not tighten cables sequentially from top to bottom. Start with the middle cable strand, then alternate tightening strands above and below it (e.g., center, center-top, center-bottom). This distributes structural loads symmetrically across the frame and prevents post warping.

4. Progressive Tensioning & Locking: Tighten all strands to a snug fit first, then perform a final pass with a tension gauge (aiming for 200–300 lbs per strand). Secure lock nuts once target tension is met before trimming excess cable length.

Pre-Inspection Checklist for Cable Railing

• [ ] Top Rail Rigidity: Top rail resists movement under a 200 lb concentrated force.

• [ ] Post Distance: Distance between structural posts or stiffeners does not exceed 4 feet.

• [ ] 4-Inch Sphere Test: A 4-inch rigid sphere cannot be pushed through any cable gap with 50 lbs of manual force.

• [ ] Bottom Gap Clearance: Bottom cable-to-deck gap measures less than 4 inches.

• [ ] Stair Handrail Height: Stairway handrail height sits strictly between 34 inches and 38 inches.

• [ ] Tension Hardware: Tensioners are securely locked with threads remaining for future adjustments.

How BLIKA Simplifies Code Compliance

Designing a cable railing system to pass inspection requires balancing post rigidity, cable tension, and hole spacing. BLIKA Cable Railing Systems are engineered around IRC and IBC safety standards to streamline installation:

• Factory-Calibrated Spacing: Available in 36-inch and 42-inch heights, BLIKA stainless steel posts feature pre-drilled holes spaced precisely at 3-1/8 inches on center. This fixed spacing maintains a clear gap that prevents 1/8" cables from exceeding the 4-inch sphere limit under deflection testing.

• Marine-Grade T316 Stainless Steel: Cables and tensioning fittings are manufactured from Grade 316 stainless steel, minimizing material stretch and corrosion over time to preserve long-term tension.

• Structural Load Capacity: Heavy-duty terminal posts and mounting brackets provide the rigidity needed to anchor cumulative cable tension without post deflection.

Frequently Asked Questions

Q: Is cable railing legal in my state/city?

A: Yes, cable railing is completely legal under the International Residential Code (IRC) and International Building Code (IBC), which govern most of the United States. However, some local jurisdictions or HOA guidelines may have specific restrictions regarding the "ladder effect" (though this was removed from national codes in 2002). Always check with your local building department before starting.

Q: What cable thickness is required by code?

A: While code does not explicitly mandate a specific thickness, the industry standard for residential decks is 1/8-inch or 3/16-inch 1x19 stainless steel wire rope. 1/8-inch cable provides excellent tensile strength while maintaining a minimalist, invisible appearance.

Q: Do cable railings eventually sag?

A: Yes, cable railings can sag over time, especially if they are not properly tensioned during installation. Stainless steel cables naturally experience slight stretch under load and temperature changes. Regular re-tensioning (especially in the first few months) helps keep them tight and code-compliant.

Q: How often do I need to re-tension my cables?

A: High-quality T316 stainless steel cables, when paired with professional tensioning hardware like BLIKA kits, generally only need to be adjusted once or twice shortly after installation as the frame settles. After that, they remain structurally tight for years.

Q: Do cable railings need a top rail?

A: In most residential applications, cable railings still need a top rail because building codes (like IRC) require a continuous guard/handrail at the top. The cables are only the infill and cannot replace the structural top rail. However, in some engineered or commercial systems, frameless designs exist, but they must be specifically code-approved.
