When designing or installing a cable railing system, one of the most critical steps is planning the spacing between posts. Post spacing directly determines the safety, compliance, aesthetics, and long-term performance of the railing system.
So, how far apart should the posts be for cable railings? This article will guide you through industry standards, building codes, and how to calculate and plan post spacing in practical applications.
How Far Apart Should Posts Be for Cable Railing?
Standard Post Spacing

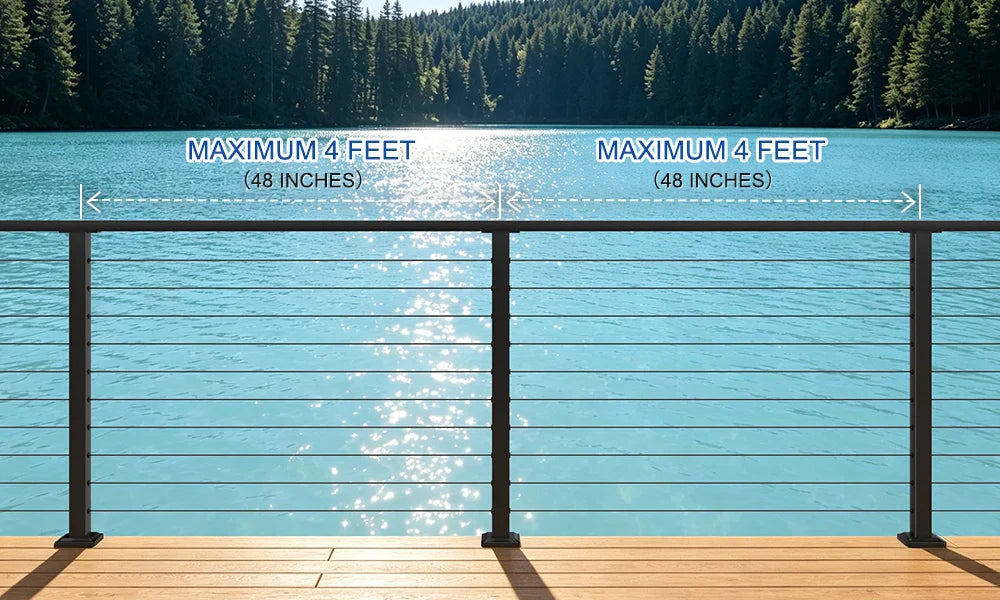

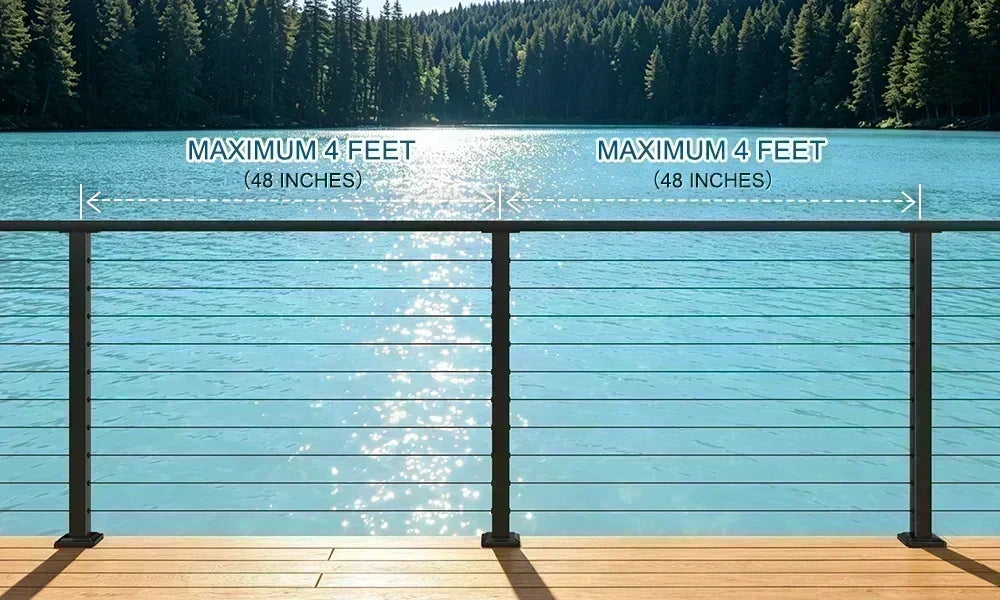

For most residential and commercial cable railing systems, the gold standard for post spacing is maximum 4 feet on center. This spacing ensures optimal cable tension and prevents sagging, keeping the system safe, stable, and up to code. However, in actual projects, post spacing isn’t set in stone. Depending on post material and system design, post spacing can be flexibly adjusted between 3 and 5 feet. Here is an illustrative chart of cable railing post spacing:
| Post Type |
Standard Spacing (On-Center)
|
Maximum Safe Limit |
| Metal / Stainless Steel | 4 Feet | 5 Feet |
| Wood Posts (4x4 or 6x6) | 3 to 4 Feet | 4 Feet |
| Stairs & Angled Sections | 3 Feet | 4 Feet |
Maximum Post Spacing
In certain exceptional cases, post spacing can reach a maximum of 5 to 6 feet, but this is not standard practice. Such situations typically require sturdier end posts, thicker stainless steel cables, and high-performance tensioning hardware. Without these upgrades, the system may become unstable and more prone to sagging over time.
There are also engineered systems that claim to support spans of up to 7 feet, but this is only achievable when using specific brands of components (such as cable stabilizers) and strictly adhering to installation specifications. Due to these limitations, many claims regarding wider spans depend on specific circumstances. For most residential deck, porch, balcony, and stair railing projects, a maximum span of 4 feet remains the industry standard guideline.
Why Railing Post Spacing Matters: Safety Compliance
Proper post spacing is not merely a matter of aesthetics; it directly affects the safety, compliance, and long-term performance of a cable railing system. If the posts are placed too close, the system cost increases and it appears bulky or cramped, disrupting the clean and transparent design of the cable railing. On the other hand, post spacing directly affects the deflection of the cable under stress. If the post spacing is too wide, the cables are prone to deformation or sagging under tension, making it difficult to maintain proper tension and thereby compromising the railing’s overall stability.
The International Residential Code (IRC) and the International Building Code (IBC) do not explicitly specify the maximum spacing between cable railing posts, but rather indirectly constrain it through load requirements and 4-inch sphere rule. The specifications require:
- The top rail or handrail must be able to withstand a concentrated load of 200 pounds.
- The infill (steel cable) must be able to withstand a uniformly distributed load of 50 pounds per square foot and a concentrated load of 50 pounds.
- The railing must prevent a 4-inch-diameter sphere from passing through any opening to ensure child safety.
To meet these requirements, the cable railing industry's standard practice is to keep the post spacing no more than 4 feet. With a 4-foot post spacing and a 3-inch vertical cable spacing, the cables remain properly tensioned. Even under normal daily stress or slight bending, the cables will not deform enough to allow a 4-inch sphere to pass through, ensuring that your railing is safe and compliant with regulations.
If your post spacing exceeds 4 feet, the cables may sag or stretch apart under pressure. This creates dangerous gaps that allow a 4-inch sphere to pass through, failing building codes and safety inspections.
With a 4-foot post spacing, the top rail also receives continuous support from each post, enabling it to better withstand daily loads. And that is exactly why post spacing is so critical, and why the 4-foot maximum span has become the gold standard across the cable railing industry.
Factors that Affect Cable Railing Posts Spacing
Post spacing is not a one-size-fits-all metric. It changes dynamically based on the stiffness of your posts, the environment, and the layout of your deck.
Post material
- Metal Posts (Stainless Steel / Aluminum): Yield high rigidity. You can confidently place them at 4 feet, or up to 5 feet if using an engineered system with 2"x 2" or thicker heavy-wall tubing.
- Wood Posts: Wood naturally flexes, shrinks, and shifts due to moisture change (creep). To compensate for wood warp and keep long-term cable tension, wood posts should ideally be spaced every 3 to 4 feet.
Cable diameter and quantity
Smaller diameter cables, such as 1/8-inch cables, have greater deflection and may therefore require closer post spacing.
Cable Tension System
Different hardware systems control cable tension in different ways. High-quality tensioning fittings help maintain cable tension over long distances, while the base system require smaller post spacing.
Location and environment
Outdoor railings are affected by wind, temperature variations, and humidity, all of which affect cable tension. In typical indoor or sheltered areas, a spacing of 4 to 6 feet is generally acceptable. In more exposed outdoor environments or in windier areas, a smaller spacing of approximately 3 to 4 feet is recommended for better long-term stability.
Railing Layout
The characteristics of railings differ for straight sections, corners, and staircases. Longer straight sections may require additional posts in the middle, corners need stronger support, and staircase areas typically require smaller spacing to ensure safety and alignment.
How to Calculate Cable Railing Post Spacing?
In cable railing systems, post spacing refers to the distance between the center points of two adjacent posts. To calculate the spacing between posts, never simply mark your deck every 4 feet starting from one end. You must calculate the On-Center(OC) distance by evenly dividing the total length between your main architectural end posts.
Step 1: Measure the length between the start and end points. First, clearly define the start and end points of the cable route, i.e., the location of the main structural posts. These are typically located at the ends and corners of the railing and are key supports bearing the main tension of the cable.
Step 2: Determine the Number of Spans. Divide that total length by the maximum allowed spacing (4 feet). Always round the result up to the nearest whole number to ensure you remain safely under the 4-foot limit.
Step 3: Calculate the Exact Spacing. Divide the total length by your new rounded number of spans.
Final Words
Cable railing post spacing directly affects the safety, code compliance, and long-term performance of the entire system. In most projects, 4 feet is considered the industry gold standard, while actual spacing typically ranges from 3 to 5 feet. Within this range, the cable tensioning system performs optimally and ensures the stability of the railing while meeting building code requirements.
When spacing exceeds 5 feet, the system usually requires additional reinforcement, such as cable stabilizers and higher-grade posts, cables, and hardware to maintain structural strength and reduce deflection. If there is any uncertainty, it is always recommended to consult your local building inspector to ensure compliance with applicable codes and site-specific requirements.
